The new SEFAC S4 mobile column can lift vehicles up to 50t with a capacity of 8.2t per column. It is possible to connect up to 6 mobile columns together and lift a wide range of vehicles with tire diameters ranging from 600 mm to 1,486 mm*. *Dimensions with fork adapters

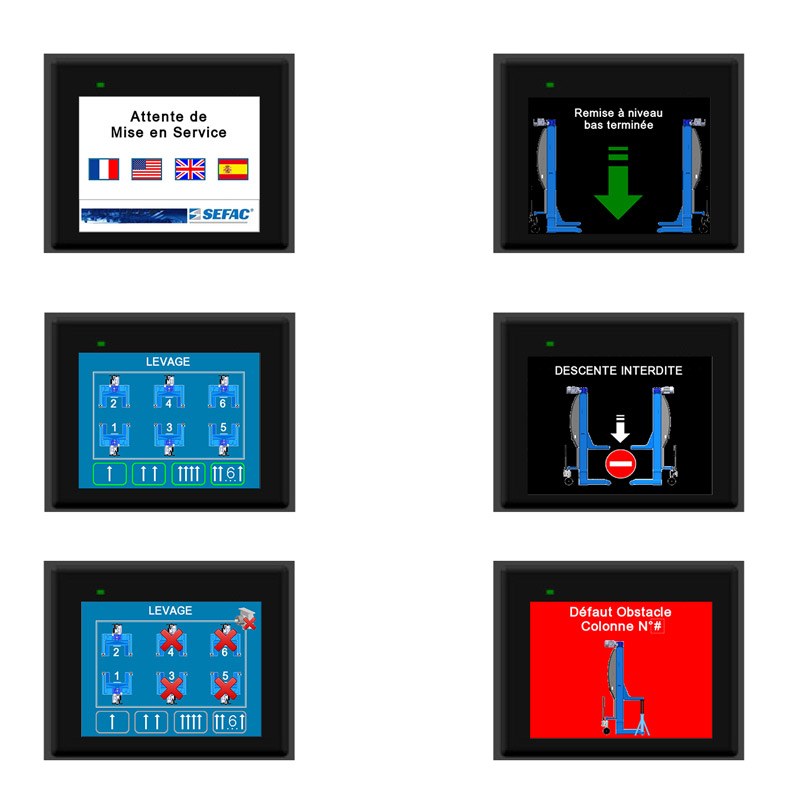

The S4 mobile column is equipped with an intuitive touch screen that gives you easily access to all the relevant information needed to operate your lifts. The screen has been designed to configure your columns quickly and to easily carry out a diagnosis in the event of a fault.
The S4 is configurable in ISO+ mode for a height correction of ± 2 mm.
Change the bronze nut in less than 15 minutes thanks to the patented SEFAC bronze nut quick change device! SEFAC bronze screw/nut electro-mechanical technology guarantees minimal maintenance and a long life for your column lifts.
Read about our technological solutions: Screw/nut system
| Mobile lift S4 | |
| Lifting capacity per column | 8,2t |
| Operating mode | Single/Group of 2,4 or 6 |
| Connection mode | Cabled in star |
| Control mode | Touch screen display |
| Tyre size | 962 mm to 1 154 mm |
| Tyre size with wheel adaptors in option | 600 mm to 1 486 mm |
| Lifting speed up
ISO+ option Lifting speed up |
650 mm/min
435 mm/min |
| Lifting speed down
ISO+ option Lifting speed down |
650 mm/min
435 mm/min |
| Lifting height | 1 820 mm |
| Standard height difference correction | +/- 8 mm |
| ISO+ heigh difference correction in option | +/- 2 mm |
| Overall dimensions (l x L x h) | 1 145 mm x 1 050 mm x 2 520 mm |
| Leg height | 140 mm |
| Weight per column | 450 kg |
| Engine power | 2,9 kW |
| Electrical protection rating | IP 54 |
| Options | LED lights
Wheel adaptors Rail claw |
The column can move in all directions with its pallet truck-type movement system to free up the lifting area. No interference issues with the vehicle’s dynamic gauge.
