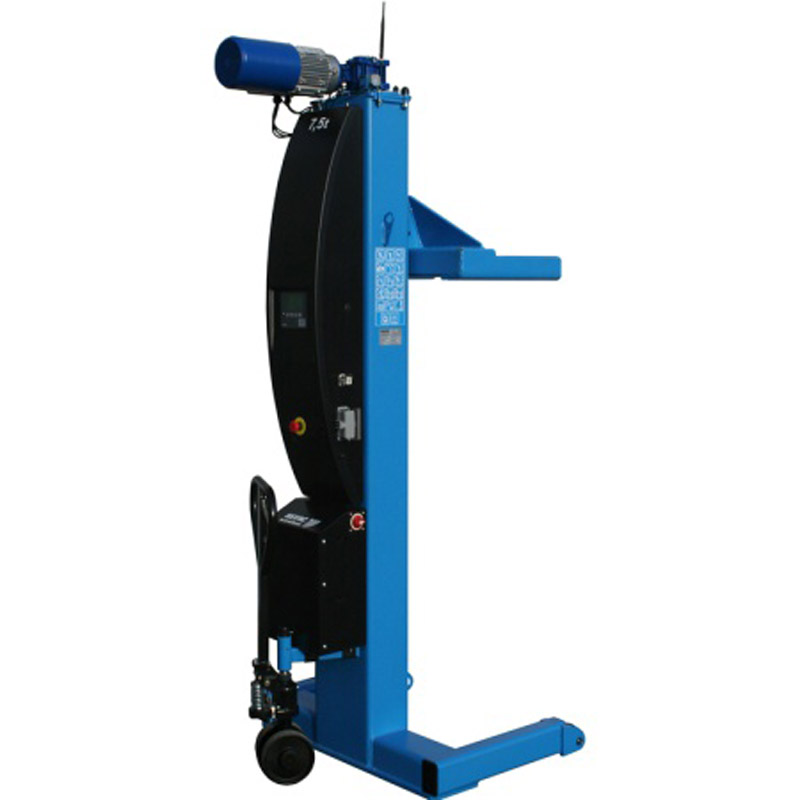

SEFAC’s wireless mobile column lifts are the lightest columns on the market and are designed to lift loads up to 7.5t per column. The lift system can be configured as a set of 4, 6 or 8 columns and can lift a wide range of vehicles with tyre diameter from 600 mm to 1,154 mm*.
*with wheel adaptors
The wireless mobile columns are equipped with the patented SWIP communication protocol which allows the columns to communicate with each other without interference. The columns benefit from enhanced precision and synchronization.
Read more about our technological solutions: Wireless and Ball screw
| PME 75 SW | |
| Capacity per column | 7,5t |
| Configuration (number of columns connected) | 2 / 4 / 6 / 8 |
| Operating mode | Individual, pair, set |
| Wireless | |
| Control mode | Remote control |
| Screen | Yes on each column |
| Fork width | 962 mm to 1 154 mm |
| Lifting speed | 1 000 mm/min |
| Descent speed | 1 000 mm/min |
| Lifting height | 1 820 mm |
| Height difference correction | Correction +/- 6mm Default +/- 20mm |
| Spacing (l x L x h) | 1 060 mm x 1 170 mm x 2 520 mm |
| Feet height | 135 mm |
| Weight per column | 460 kg including batteries |
| Engine power | 1,5 kW |
| Batterie charging time | 10 h |
| Charge cycles 7,5t load | 15 cycles |
| Charge cycles 4t load | 30 cycles |
| Protection rating | IP54 |
| Use | Bus, Car, Tractors, Construction machines |
| Options | LED lights
Wheel adapters |
The column can move in all directions with its pallet truck-type movement system to free up the lifting area. No interference issues with the vehicle’s dynamic gauge.
