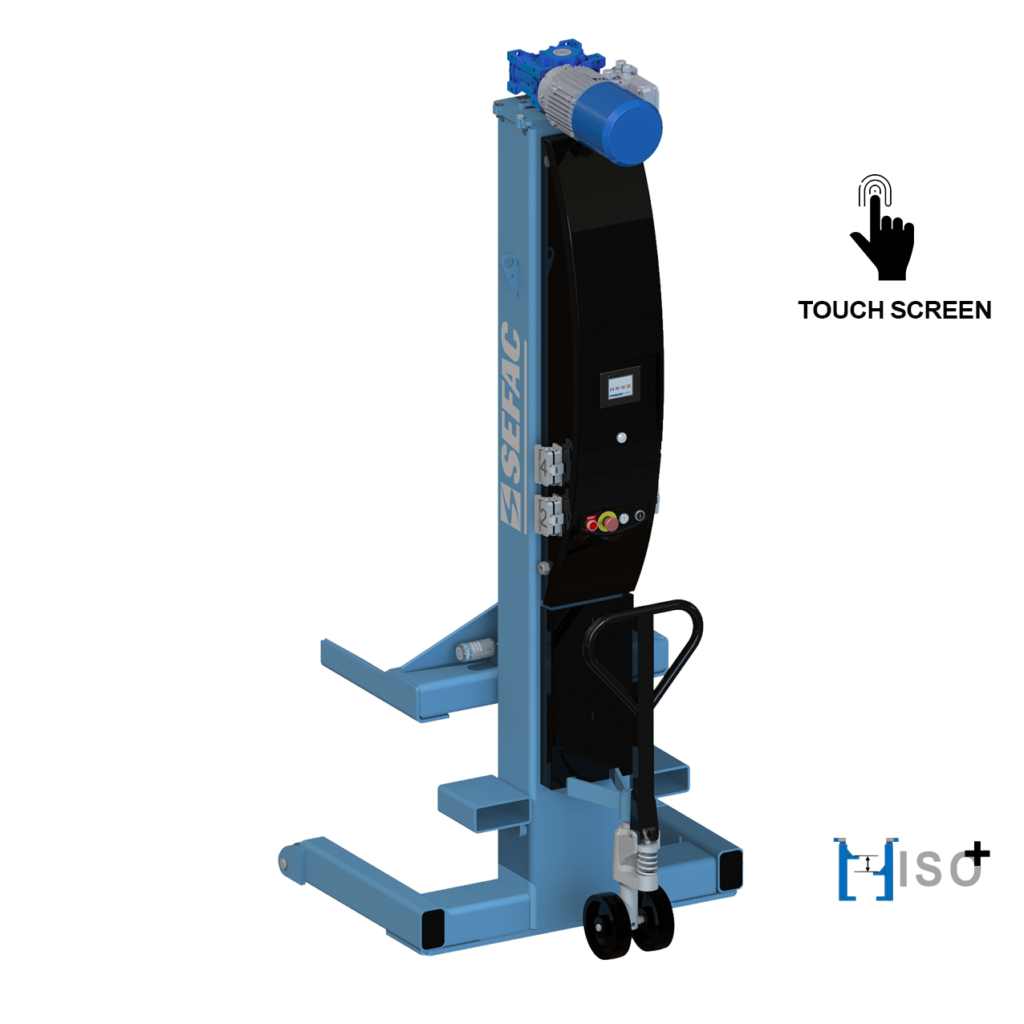

SEFAC’s wireless mobile column lifts are the lightest columns on the market and are designed to lift loads up to 18,000 lb.per column. The lift system can be configured as a set of 2,4, 6 or 8 columns and can lift a wide range of vehicles with tire diameter from 38 to 46 inches.
The wireless mobile columns are equipped with the patented SWIP communication protocol which allows the columns to communicate with each other without interference. The columns benefit from enhanced precision and synchronization.
Read more about our technological solutions: Wireless and Ball screw
This lift is ALI certified : SW3 model SW3 -02, SW3 -04, SW3 -06 and SW3 -08.
| PME 75 SW | |
| Capacity | 18,000 lb. |
| Technology | Wireless |
| Number of lifts connectable | 2 / 4 / 6 / 8 |
| Operating mode | Single / Pair / As a group |
| Control | Pendant |
| Screen | On each column lift |
| Rim size | 12 to 20 in |
| Wheel size | 38 to 46 in |
| Lifting height | 72 in |
| Lifting speed UP | 30 in/min |
| Lifting speed DOWN | 30 in/min |
| Battery charging time | 10 hours |
| Number of cycle | 20 cycles |
| Dimensions (l x L x h) | 46 in x 42 in x 99 in |
| Leg height | 5.5 in |
| Weight | 990 lb. |
| Motor power | 1.5 kW |
| Dust water protection level | NEMA 13 |
| Typical use | Bus, Coach, HD Trucks, Civil works vehicles, Garbage Trucks |
| Options | LED lights |
The column can move in all directions with its pallet truck-type movement system to free up the lifting area. No interference issues with the vehicle’s dynamic gauge.
