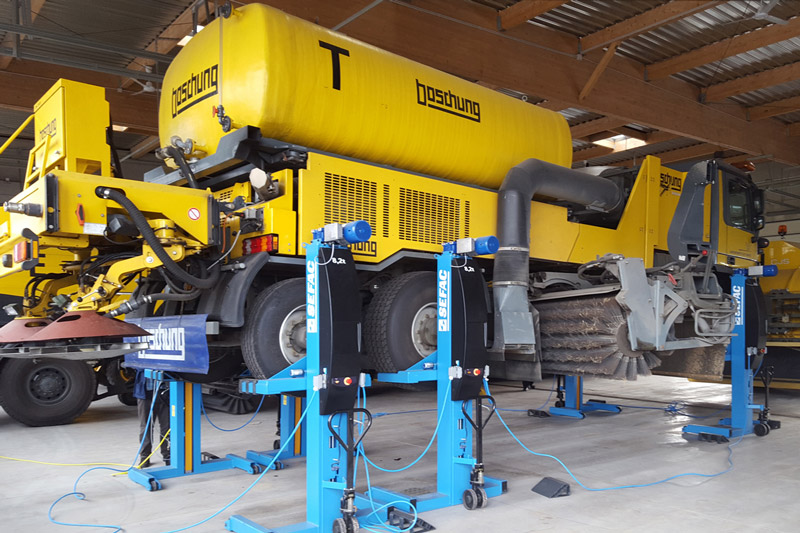

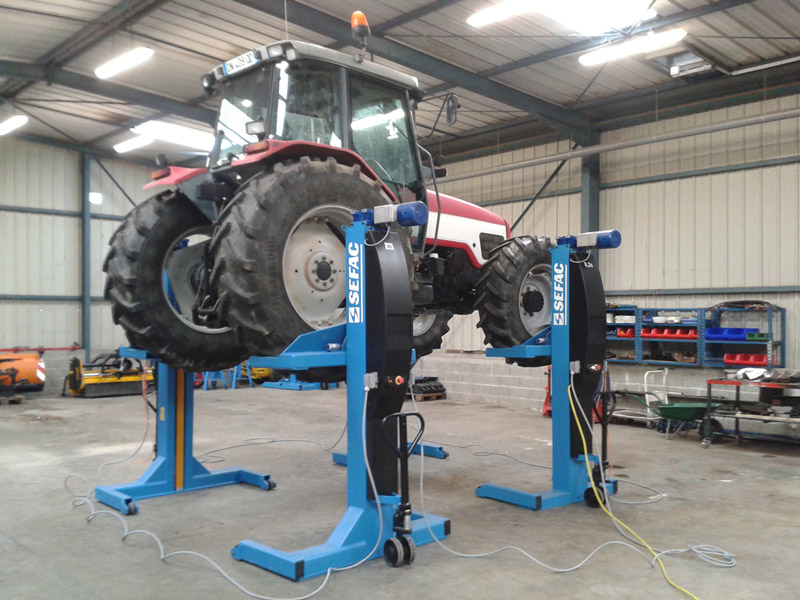

SEFAC has designed mobile column lifts for heavy duty vehicles with a lifting capacity of 10t per column.
The 1200M100 and 1600M100 columns are suitable for vehicles up to 40 tons.
The 1200M100 column has been designed for vehicles with a tire diameter of between 962 mm and 1,154 mm. The 1600M100 column is intended for vehicles with a tire diameter between 1,150mm and 1,486mm.
Read about our technological solutions: Screw/nut system
| Reference | 1200M100 | 1600M100 |
| Capacity per column | 10t | 10t |
| Cofiguration (number of columns connected) | 2 / 4 / 6 / 8 | 2 / 4 / 6 / 8 |
| Connection mode | Loop – Wired | Loop – Wired |
| Operating mode | Individual, pair, set | Individual, pair, set |
| Control mode | Push button + Remote control | Push button + Remote control |
| Screen | No | No |
| Fork width | 962 to 1 154 mm | 1 150 to 1 486 mm |
| Lifting speed | 680 mm/min | 680 mm/min |
| Lifting height | 1 820 mm | 1 820 mm |
| Spacing | 1 070 l (mm) | 1 250 l (mm) |
| x 1 100 L (mm) | x 1 100 L (mm) | |
| x 2 540 h (mm) | x 2 535 h (mm) | |
| Feet height | 140 mm | 140 mm |
| Weight per column | 385 kg | 415 kg |
| Engine power | 3,5 kW | 2,9 kW |
| Protection rating | IP54 | IP54 |
| Sound level | < 75 dB | < 75 dB |
The column can move in all directions with its pallet truck-type movement system to free up the lifting area. No interference issues with the vehicle’s dynamic gauge.
